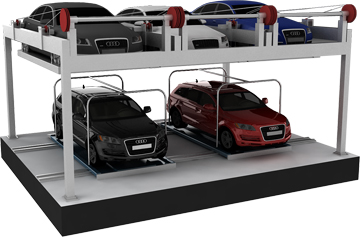

Puzzle Type Car Parking system
- Simple method of operation. Easy maintenance.
- Short time of entry and exit of car.
- There are mainly divided as two, pneumatic type and mechanical chain type.
- There are several parking models such as from 2 levels up to 6 levels.
- Very economical system with a short period of design and installation.
- The following is a description of various performance-oriented drawings. Please contact us for the best parking systems of your valuable property.
Design on each case* Click on case, Drawing shows.
| CASE 1 | CASE 2 | CASE 3 | CASE 4 |
|---|---|---|---|
| 5 Levels type | 3 Levels pit type | 2 Levels pit type pneumatic |
Simple 2 Levels type |
Specification
| Dimension of allowable car | medium car | large car | RV |
|---|---|---|---|
| Length(mm) | 2050 | 2150 | 2150 |
| Width(mm) | 5050 | 5200 | 5200 |
| Height(mm) | 1550 | 1550 | 2000 |
| Weight(mm) | 1850 | 2200 | 2200 |
| Power & Speed |
Lifting: 2.2kw/5m/min Driving: 0.2kw/10m/min |
||
| Power specification | AC 380v/220v×3Phase×60Hz/5kva~10kva | ||
